Budget the complete setup
Budget for monitor, keyboard, mouse, cables and operating system if absent.
Expert reviews. One COR Score.

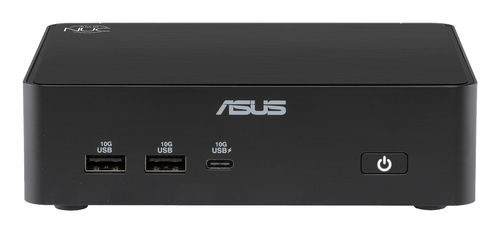

ASUS RNUC16GDKU5663N2 reviews
tbd
Compare ASUS RNUC16GDKU5663N2 reviews, specifications and available UK retailer offers. Check the details for this exact model and follow the original critics’ findings.
Manufacturer code90AS00Q1-M00080
The product, explained
About the ASUS RNUC16GDKU5663N2
ASUS 90AS00Q1-M00080 is listed in the pcs/workstations category. The recorded specifications include processor family: Intel Core Ultra 5; internal memory: 16 GB; total storage capacity: 512 GB; operating system installed: Windows 11 Pro. This entry covers manufacturer code 90AS00Q1-M00080. Specifications relate to this exact source record; other editions or packages may differ.
This configuration lists 16 GB of memory and 512 GB of storage. Memory supports active applications; storage holds software and files. Check upgradeability separately, because a capacity figure does not establish whether either component can be replaced.
- Processor family
- Intel Core Ultra 5
- Processor model
- 325
- Memory (RAM)
- 16 GB
- Total storage capacity
- 512 GB
- Storage media
- SSD
- Operating system installed
- Windows 11 Pro
Make it work for you
Before choosing the ASUS RNUC16GDKU5663N2
Match components to applications
Match processor, memory and graphics to named applications.
Measure desk and ventilation
Measure desk and ventilation space, including cable access.
Confirm display support
Confirm monitor outputs, resolution and refresh support.
Independent perspectives
Expert reviews 0
Independent ratings, converted to the same five-point scale. Each card links to the original review and identifies the available evidence.
No scored critic reviews have been imported for this exact product yet. It remains unrated.
Independent reviews, made comparable
What does the COR Score mean?
One consistent scale makes different publishers’ ratings easier to compare. The original review still tells you why a critic reached that verdict.
Read our scoring methodology →Scale conversion · example
8/ 104.00/ 5
An illustration of conversion, not this product’s rating.
Check the match
Identify the exact model and the version reviewed. Check the manufacturer code, configuration and supplied accessories.
Compare on one scale
Convert usable ratings to five points, count each publisher once and give each critic equal weight.
Require three critics
Show the average to two decimal places after three distinct critics. Otherwise display tbd, keeping individual reviews visible.
Find the best fit by considering the score alongside the critic count, review dates, tested version and the strengths that matter to you. Eligible model-level reviews identify the tested configuration. Reviews of different hardware are shown separately and do not enter this product’s COR Score.
Know exactly what you’re buying
ASUS RNUC16GDKU5663N2 specifications
Manufacturer code: 90AS00Q1-M00080 · Icecat product 140051958 · Checked 22 Sep 2026. Specifications belong to this exact model.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.
| Processor family | Intel Core Ultra 5 |
|---|---|
| Processor model | 325 |
| Memory (RAM) | 16 GB |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Operating system installed | Windows 11 Pro |
| Discrete graphics card model | Not available |
| Chassis type | Mini PC |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
More product specifications
Open a section for the details that matter to you.
Audio & listening5 details
| Performance-core Max Turbo Frequency | 4.5 GHz |
|---|---|
| Low Power Efficient-core Max Turbo Frequency | 3.4 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.6 GHz |
| Low Power Efficient-core Base Frequency | 1600 MHz |
Display1 detail
| Display included | No |
|---|
Processor, memory & storage21 details
| Processor manufacturer | Intel |
|---|---|
| Processor generation | Intel® Core™ Ultra (Series 3) |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 4.5 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor base power | 25 W |
| Neural processor unit (NPU) | Intel AI Boost |
| AI software frameworks supported by NPU | ONNX RT, WebNN, Windows ML, OpenVINO |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| SSD capacity | 512 GB |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| On-board graphics card 8K support | Yes |
Connections & wireless16 details
| SSD interface | PCI Express 4.0 |
|---|---|
| Ethernet LAN data rates | 2500 Mbit/s |
| LAN controller | Intel I226-V |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 6.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 4 ports quantity | 2 |
| HDMI ports | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Number of rear USB ports | 2 |
| Number of front USB ports | 3 |
Design & dimensions8 details
| Product type | Mini PC |
|---|---|
| Colour name | Black |
| Placement supported | Horizontal/Vertical |
| Product colour | Black |
| Width | 144 mm |
| Depth | 117 mm |
| Height | 42 mm |
| Weight | 685 g |
Software & compatibility1 detail
| Operating system architecture | 64-bit |
|---|
Further product details17 details
| Performance cores | 4 |
|---|---|
| Low Power Efficient-cores | 4 |
| Maximum turbo power | 55 W |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI datatype support on NPU | Int8 |
| NPU performance up to | 47 TOPs |
| GPU performance up to | 40 TOPs |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| On-board GPU manufacturer | Intel |
| Market positioning | Business |
| Intel® Thunderbolt 4 | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Packaging & supplied accessories4 details
| Package width | 206 mm |
|---|---|
| Package depth | 108 mm |
| Package height | 171.5 mm |
| Package weight | 1.5 kg |
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
Build your shortlist
Compare other desktop pcs
More products in this category. Compare their exact features, original reviews and available offers alongside the ASUS RNUC16GDKU5663N2.
| Product | Brand | Shown model | COR Score |
|---|---|---|---|
| Apple Mac mini M6 reviews → | Apple | MHQM4B/A512 GB · 24 GB RAM · M6 · Silver | tbd2 critic reviews · Available after 3 |
| Apple iMac 24 M4 reviews → | Apple | MWV53B/A512 GB · 16 GB RAM · M4 · Pink | tbd0 critic reviews · Available after 3 |
| Apple Mac mini M5 Pro reviews → | Apple | MHQN4B/A512 GB · 24 GB RAM · M5 Pro · Silver | tbd0 critic reviews · Available after 3 |
| Apple Mac Studio M5 Max reviews → | Apple | MHQJ4B/A1 TB · 64 GB RAM · M5 Max · Silver | tbd0 critic reviews · Available after 3 |
Your questions, answered
ASUS RNUC16GDKU5663N2 FAQs
How many expert reviews are available for ASUS RNUC16GDKU5663N2?
No scored critic reviews have been imported for this product yet. This means review coverage is missing; it does not mean the product received a poor review.
What is the COR Score for ASUS RNUC16GDKU5663N2?
The COR Score is tbd. We publish a combined score only after at least three distinct critics have usable ratings. Any individual reviews already available remain visible.
Which exact version does this page cover?
This page identifies ASUS RNUC16GDKU5663N2 using manufacturer code 90AS00Q1-M00080. Check that code, configuration and supplied accessories against the retailer listing. Related-version reviews are labelled separately and do not contribute to this version’s score.
What is the listed processor family for ASUS RNUC16GDKU5663N2?
The source specification records processor family as Intel Core Ultra 5. This is a specification, not an independent performance measurement. Check the exact model and the original critic reviews for real-world results.
What is the listed processor model for ASUS RNUC16GDKU5663N2?
The source specification records processor model as 325. This is a specification, not an independent performance measurement. Check the exact model and the original critic reviews for real-world results.
Where can I compare prices for ASUS RNUC16GDKU5663N2?
Use the retailer-offer section on this page for available matched offers. If no offer is shown, we do not currently have a verified price. Confirm model, stock, delivery and the final total at the retailer; coverage does not include every seller.
Is a desktop cheaper than a laptop?
It can offer different value, but compare the whole usable setup including display and peripherals.
Can I upgrade any desktop?
No. Chassis, power supply, motherboard and warranty constraints vary. Read the exact model documentation.
Does a larger power supply use more electricity?
Its rating is capacity, not a measure of constant consumption. Actual use depends on the components and workload.
How should I use the specifications alongside reviews?
Use the recorded features to check compatibility and make a shortlist. Read the original reviews for measured performance, everyday use and the tested configuration.
