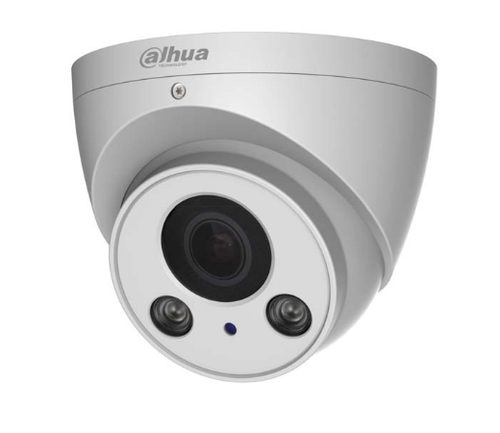

Dahua Technology DH-HAC-HDW2220RP-Z
tbdCOR ScoreAvailable after 3 critic reviews
Security cameras
Dahua Technology HAC-HFW1400SP-0360B reviews
Product specifications and review coverage for this exact model.
Image supplied through Icecat
Product overview
Dahua Technology HAC-HFW1400SP-0360B is listed in the security cameras category. The recorded specifications include type: CCTV security camera; placement supported: Indoor & outdoor; maximum resolution: 2560 x 1440 pixels; night vision: Yes. This entry covers manufacturer code HAC-HFW1400SP-0360B. Specifications relate to this exact source record; other editions or packages may differ.
Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.
Expert reviews
No scored critic reviews have been imported for this exact product yet. It remains unrated.
The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.
Specifications
Manufacturer code: HAC-HFW1400SP-0360B. Icecat product 78834743 · Checked 15 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.
| Type | CCTV security camera |
|---|---|
| Placement supported | Indoor & outdoor |
| Maximum resolution | 2560 x 1440 pixels |
| Night vision | Yes |
| Night vision distance | 30 m |
| Connectivity technology | Wired |
| Power source type | DC |
| Water and dust resistance (IP rating) | IP67 |
More product specifications
Open a section for the details that matter to you.
Audio & listening1 detail
| Noise reduction | Yes |
|---|
Processor, memory & storage5 details
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 2560 x 1440 |
|---|---|
| Frame rate | 25 fps |
| Built-in HDD | No |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 0 - 90% |
Camera, image & video16 details
| Camera pan control | Yes |
|---|---|
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 97° |
| Lens viewing angle, vertical | 52° |
| White balance | Auto, Manual |
| Camera shutter speed | 1/25 - 1/100000 s |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type | CMOS |
| Number of lenses | 1 |
| Fixed focus | Yes |
| Maximum aperture number | 2 |
| Fixed focal length | 2.8 mm |
| Closest focusing distance | 0.8 m |
| Total megapixels | 4 MP |
| Supported video modes | 1080p |
| Number of cameras | 1 |
Printing, scanning & paper1 detail
| Progressive scan | Yes |
|---|
Connections & wireless3 details
| Ethernet LAN | Yes |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
Power & battery2 details
| Power consumption (max) | 4.9 W |
|---|---|
| DC output voltage | 12 |
Controls & features4 details
| Number of sensors | 1 |
|---|---|
| Gain control type | Auto |
| Smart IR | Yes |
| Operating temperature (T-T) | -40 - 60 °C |
Design & dimensions8 details
| Form factor | Bullet |
|---|---|
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| Housing material | Aluminium |
| Width | 164.7 mm |
| Depth | 70 mm |
| Height | 71.6 mm |
| Weight | 380 g |
Software & compatibility1 detail
| Certification | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
|---|
Further product details21 details
| Wide Dynamic Range (WDR) | Yes |
|---|---|
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, German, English, Estonian, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| Minimum illumination | 0.03 lx |
| Angle of rotation | 360° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| Detect distance | 56 m |
| Observe distance | 22 m |
| Recognize distance | 11 m |
| Identify distance | 6 m |
| LED type | IR |
| Number of illumination LEDs | 18 |
| Analog signal format system | PAL |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Operating relative humidity (H-H) | 0 - 90% |
Packaging & supplied accessories1 detail
| Package weight | 470 g |
|---|
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
