DELL ECS1250
tbdCOR ScoreAvailable after 3 critic reviews
Desktop PCs
DELL 5820 reviews
Product specifications and review coverage for this exact model.

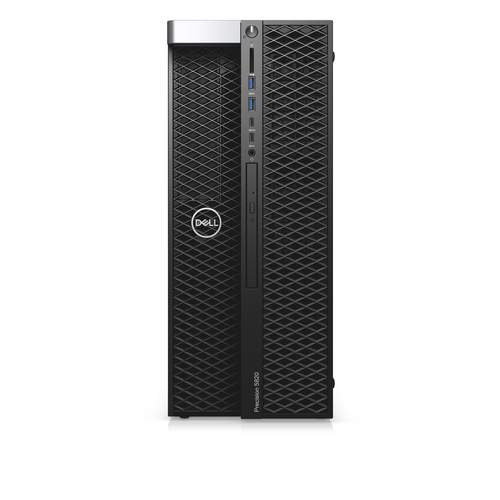

Image supplied through Icecat
Product overview
DELL 0PPP1 is listed in the pcs/workstations category. The recorded specifications include processor family: Intel® Xeon®; internal memory: 16 GB; total storage capacity: 512 GB; operating system installed: Windows 7 Professional. This entry covers manufacturer code 0PPP1. Specifications relate to this exact source record; other editions or packages may differ.
Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.
Expert reviews
No scored critic reviews have been imported for this exact product yet. It remains unrated.
The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.
Specifications
Manufacturer code: 0PPP1. Icecat product 45549171 · Checked 21 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.
| Processor family | Intel® Xeon® |
|---|---|
| Processor model | W-2133 |
| Memory (RAM) | 16 GB |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Operating system installed | Windows 7 Professional |
| Discrete graphics card model | NVIDIA® Quadro® P2000 |
| Chassis type | Tower |
| Wi-Fi | No |
| Ethernet LAN | Yes |
More product specifications
Open a section for the details that matter to you.
Audio & listening5 details
| Audio channels | 2.0 channels |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Yes |
| Audio chip | Realtek ALC3234 |
| Audio system | High Definition Audio |
Display1 detail
| Display included | No |
|---|
Processor, memory & storage37 details
| Processor manufacturer | Intel |
|---|---|
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 8.25 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Skylake |
| Number of processors installed | 1 |
| Processor socket | LGA 2066 (Socket R4) |
| Maximum internal memory supported by processor | 512 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400,2666 MHz |
| Memory bandwidth supported by processor (max) | 85.3 GB/s |
| ECC supported by processor | Yes |
| Maximum internal memory | 256 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 2666 MHz |
| SSD capacity | 512 GB |
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete graphics card memory | 5 GB |
| Discrete graphics memory type | GDDR5 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Motherboard chipset | Intel® C422 |
| Compatible processor series | Intel® Xeon® |
| Processor package size | 45 x 52.5 mm |
| Processor code | SR3LL |
| Processor ARK ID | 125040 |
| Conflict-Free processor | Yes |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Connections & wireless8 details
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Power & battery3 details
| Power supply | 425 W |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Controls & features1 detail
| Operating temperature (T-T) | 5 - 35 °C |
|---|
Design & dimensions11 details
| Thermal Design Power (TDP) | 140 W |
|---|---|
| Password protection | Yes |
| Password protection type | BIOS |
| Product type | Workstation |
| Placement supported | Vertical |
| Product colour | Black |
| Intel Identity Protection Technology version | 1.00 |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Width | 176.5 mm |
| Depth | 518.3 mm |
| Height | 417.9 mm |
Software & compatibility6 details
| Operating system architecture | 64-bit |
|---|---|
| Operating system language | Multilingual |
| Recovery operating system | Windows 10 Pro |
| Trial software | Microsoft Office |
| Intel Software Guard Extensions (Intel SGX) | No |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
Further product details48 details
| System bus rate | 0 GT/s |
|---|---|
| Bus type | QPI |
| Tcase | 65 °C |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 48 |
| PCI Express configurations | 1x16, 1x4, 1x8 |
| Stepping | U0 |
| Memory channels | Quad-channel |
| Optical drive type | DVD±RW |
| Number of SSDs installed | 1 |
| Market positioning | Business |
| Trusted Platform Module (TPM) | Yes |
| Optical drives quantity | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Line-out | Yes |
| Line-in | Yes |
| PCI Express x16 slots | 5 |
| PCI slots | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | No |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Scalability | 1S |
| Physical Address Extension (PAE) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Operating relative humidity (H-H) | 8 - 85% |
| Operating altitude | -15.2 - 3048 m |
| Mouse included on selected markets only | Yes |
| Keyboard included on selected markets only | Yes |
Packaging & supplied accessories2 details
| Cables included | AC |
|---|---|
| Manual | Yes |
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
