Acer Aspire TC-101 Tower Desktop - Intel Core i5-13420H, 8GB, 512GB SSD, Integrated Graphics, No Display, Windows 11, White
tbdCOR ScoreAvailable after 3 critic reviews
Desktop PCs

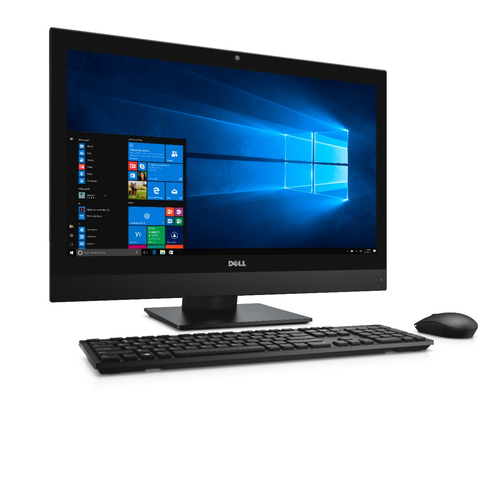

DELL 7450 reviews
Product specifications and review coverage for this exact model.
Image supplied through Icecat
Product overview
DELL 5DH18 is listed in the all-in-one pcs/workstations category. The recorded specifications include processor family: Intel® Core™ i7; internal memory: 8 GB; total storage capacity: 256 GB; operating system installed: Windows 10 Pro. This entry covers manufacturer code 5DH18. Specifications relate to this exact source record; other editions or packages may differ.
Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.
Expert reviews
No scored critic reviews have been imported for this exact product yet. It remains unrated.
The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.
Specifications
Manufacturer code: 5DH18. Icecat product 37847603 · Checked 21 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor model | i7-7700 |
| Memory (RAM) | 8 GB |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Operating system installed | Windows 10 Pro |
| Discrete graphics card model | Not available |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
More product specifications
Open a section for the details that matter to you.
Audio & listening6 details
| Built-in speakers | Yes |
|---|---|
| Rated audio power (RMS) | 8 W |
| Built-in microphone | Yes |
| Audio system | Waves MaxxAudio Pro |
| Microphone in | No |
| Audio output | Yes |
Display6 details
| Screen size | 60.5 cm (23.8") |
|---|---|
| Screen resolution | 1920 x 1080 pixels |
| Touchscreen | No |
| Screen shape | Flat |
| Number of displays supported (on-board graphics) | 3 |
| Detachable display | No |
Processor, memory & storage43 details
| Processor manufacturer | Intel |
|---|---|
| Processor generation | 7th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 3.6 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 1151 (Socket H4) |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Processor code | SR338 |
| Maximum internal memory supported by processor | 64 GB |
| Conflict-Free processor | Yes |
| Memory types supported by processor | DDR3L, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| Memory channels supported by processor | Dual |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.35 V |
| Internal memory type | DDR4-SDRAM |
| Maximum internal memory | 16 GB |
| Memory slots | 2 |
| Memory slots type | SO-DIMM |
| Memory clock speed | 2400 MHz |
| SSD capacity | 256 GB |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 630 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5912 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Processor package size | 37.5 x 37.5 mm |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Processor ARK ID | 97128 |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 20 - 80% |
Camera, image & video6 details
| Built-in camera | Yes |
|---|---|
| Total megapixels | 2 MP |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Clear Video Technology | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Connections & wireless12 details
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
|---|---|
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports | 2 |
| DisplayPort connections | 1 |
| Combo headphone/mic port | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 1 |
Power & battery3 details
| AC adapter power | 155 W |
|---|---|
| AC adapter frequency | 47/63 Hz |
| AC adapter input voltage | 90 - 264 V |
Controls & features1 detail
| Operating temperature (T-T) | 0 - 35 °C |
|---|
Design & dimensions11 details
| Thermal Design Power (TDP) | 65 W |
|---|---|
| Memory form factor | DIMM/SO-DIMM |
| Product colour | Black |
| Product type | All-in-One PC |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Width (with stand) | 575.2 mm |
| Depth (with stand) | 62.8 mm |
| Height (with stand) | 392.9 mm |
| Weight (with stand) | 9.76 kg |
| Weight (without stand) | 7.74 kg |
Software & compatibility3 details
| Operating system architecture | 64-bit |
|---|---|
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Further product details46 details
| HD type | Full HD |
|---|---|
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Tilt angle range | -5 - 30° |
| System bus rate | 8 GT/s |
| PCI Express slots version | 3.0 |
| Stepping | B0 |
| Bus type | DMI3 |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
| Tjunction | 100 °C |
| Number of SSDs installed | 1 |
| Optical drive type | DVD±RW |
| Trusted Platform Module (TPM) | Yes |
| BIOS password | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Secure Key | Yes |
| Intel TSX-NI | Yes |
| Intel® OS Guard | Yes |
| Intel 64 | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Embedded options available | Yes |
| Thermal solution specification | PCG 2015C |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 5000 m |
| Mouse included on selected markets only | Yes |
| Keyboard included on selected markets only | Yes |
| Drivers included | Yes |
| Power cord included | Yes |
| Autonomy mode | No |
| Dell E-Value Code | S034O7450AIO_SPL |
Packaging & supplied accessories1 detail
| Manual | Yes |
|---|
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
