Product overview
Barco K9602601 is listed in the computer monitors category. The recorded specifications include display diagonal: 52.8 cm (20.8"); display resolution: 2048 x 1536 pixels; panel type: IPS. This entry covers manufacturer code K9602601. Specifications relate to this exact source record; other editions or packages may differ.
Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.
Expert reviews
No scored critic reviews have been imported for this exact product yet. It remains unrated.
3 model options — compare versions
Specifications, review scores and prices belong to each exact model.
The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.
Specifications
Manufacturer code: K9602601. Icecat product 24397736 · Checked 22 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.

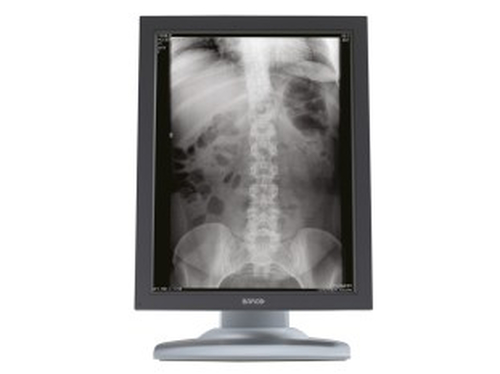

Barco Nio 3MP — key specifications
Screen size
52.8 cm (20.8")
Screen resolution
2048 x 1536 pixels
Panel type
IPS
Response time
50 ms
Display brightness (typical)
1000 cd/m²
More product specifications
Open a section for the details that matter to you.
Audio & listening2 details
Barco Nio 3MP — Audio & listening
Pixel frequency
280 MHz
Built-in speakers
No
Display6 details
Barco Nio 3MP — Display
Display technology
LED
Touchscreen
No
Contrast ratio (typical)
900:1
Viewing angle, horizontal
170°
Viewing angle, vertical
170°
On Screen Display (OSD)
Yes
Processor, memory & storage3 details
Barco Nio 3MP — Processor, memory & storage
Card reader integrated
No
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Camera, image & video1 detail
Barco Nio 3MP — Camera, image & video
Built-in camera
No
Printing, scanning & paper2 details
Barco Nio 3MP — Printing, scanning & paper
Horizontal scan range
30 - 124 kHz
Vertical scan range
50 - 85 Hz
Connections & wireless6 details
Barco Nio 3MP — Connections & wireless
USB 1.1 ports quantity
3
USB version
1.1
DVI port
Yes
Bluetooth
No
Ethernet LAN
No
Panel mounting interface
100 x 100 mm
Power & battery5 details
Barco Nio 3MP — Power & battery
Power consumption (typical)
54 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
AC adapter included
Yes
Supplied AC adapter type
LCD
Controls & features1 detail
Barco Nio 3MP — Controls & features
Operating temperature (T-T)
0 - 40 °C
Design & dimensions13 details
Barco Nio 3MP — Design & dimensions
Product colour
Grey
VESA mounting
Yes
Height adjustment
Yes
Adjustable height (max)
6 cm
Width (with stand)
488 mm
Depth (with stand)
249 mm
Height (with stand)
532 mm
Weight (with stand)
11.5 kg
Width (without stand)
488 mm
Depth (without stand)
114 mm
Height (without stand)
382 mm
Weight (without stand)
9 kg
Placement supported
Horizontal/Vertical
Software & compatibility2 details
Barco Nio 3MP — Software & compatibility
Compliance industry standards
RoHS
Certification
UL 60601-1 1ST EDITION, CAN/ CSA-C22.2 NO. 601.1-M90, UL 60950-1 1ST EDITION, CSA C22.2 NO. 60950-1-03 1ST EDITION, IEC 60601-1 2ND ED:1988 + A1:1991 + A2:1995, IEC 60950-1:2001 1ST EDITION, CE - 2004/108/EC, CE - 93/42/EC, A1:2007/47/EC CLASS IIB, DEMKO - EN 60601-1, DEMKO - EN 60950-1, CCC - GB9254-1998 + GB4943-2001 + GB17625.1-2003, VCCI, FCC class B, BSMI, KETI, FDA 510K
Further product details21 details
Barco Nio 3MP — Further product details
HD type
Full HD
Native aspect ratio
4:3
Aspect ratio
4:3
Pixel pitch
0.2070 x 0.2070 mm
Viewable size, horizontal
42.4 cm
Viewable size, vertical
31.8 cm
Viewable size diagonal
52.8 cm
Market positioning
Medical
Cable lock slot
No
Pivot
Yes
Pivot angle
0 - 90°
Swivelling
Yes
Swivel angle range
-45 - 45°
Tilt adjustment
Yes
Tilt angle range
-5 - 30°
LED indicators
Yes
Operating relative humidity (H-H)
8 - 80%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 7500 m
Quick start guide
Yes
TV tuner integrated
No
Packaging & supplied accessories5 details
Barco Nio 3MP — Packaging & supplied accessories
Package width
500 mm
Package depth
320 mm
Package height
675 mm
Package weight
15 kg
Cables included
DVI
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
