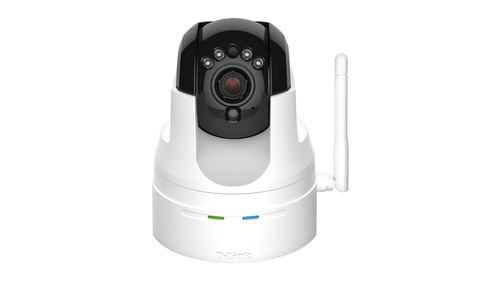

Image supplied through Icecat
Product overview
D-Link DCS-5222L/ABE is listed in the security cameras category. The recorded specifications include type: IP security camera; placement supported: Indoor; maximum resolution: 1280 x 720 pixels; night vision: Yes. This entry covers manufacturer code DCS-5222L/ABE. Specifications relate to this exact source record; other editions or packages may differ.
Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.
Expert reviews
No scored critic reviews have been imported for this exact product yet. It remains unrated.
The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.
Specifications
Manufacturer code: DCS-5222L/ABE. Icecat product 23332578 · Checked 22 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.
| Type | IP security camera |
|---|---|
| Placement supported | Indoor |
| Maximum resolution | 1280 x 720 pixels |
| Night vision | Yes |
| Night vision distance | 8 m |
| Connectivity technology | Wired & Wireless |
| Power source type | DC |
More product specifications
Open a section for the details that matter to you.
Audio & listening4 details
| Built-in speakers | Yes |
|---|---|
| Audio formats supported | AAC, G.711 |
| Built-in microphone | Yes |
| Headphone outputs | 1 |
Processor, memory & storage7 details
| Preset programs quantity | 32 |
|---|---|
| Supported graphics resolutions | 320 x 176, 320 x 240, 480 x 272, 640 x 360, 800 x 448, 1280 x 720 (HD 720) |
| Frame rate | 30 fps |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC |
| Storage temperature (T-T) | -20 - 70 °C |
Camera, image & video16 details
| Lens viewing angle, horizontal | 98° |
|---|---|
| Lens viewing angle, vertical | 52° |
| Lens viewing angle, diagonal | 115° |
| Camera shutter speed | 1/7.5 - 1/10000 s |
| Optical sensor size | 25.4 / 4 mm (1 / 4") |
| Sensor type | CMOS |
| Zoom capability | Yes |
| Digital zoom | 10x |
| Maximum aperture number | 2 |
| Fixed focal length | 2.4 mm |
| Total megapixels | 1 MP |
| Video formats supported | H.264, M-JPEG |
| Video streaming | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation |
| Video motion detection | Yes |
| Number of cameras | 1 |
Printing, scanning & paper1 detail
| Progressive scan | Yes |
|---|
Connections & wireless8 details
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP client, NTP client (D-Link), DNS client, DDNS client (D-Link), SMTP client, FTP client, HTTP/HTTPS, Samba client, PPPoE, UPnP port forwarding, RTP/RTSP/RTCP, IP filtering, QoS, CoS, Multicast, IGMP, ONVIF |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | No |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | No |
Power & battery2 details
| DC output voltage | 5 |
|---|---|
| DC output current | 2.5 A |
Controls & features5 details
| PTZ control | Yes |
|---|---|
| Alarm input/output | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
Design & dimensions8 details
| Form factor | Dome |
|---|---|
| Mounting type | Ceiling/Wall/Desk |
| Product colour | Black, White |
| Password protection | Yes |
| Width | 120 mm |
| Depth | 103.2 mm |
| Height | 130 mm |
| Weight | 340 g |
Software & compatibility3 details
| Certification | CE, FCC Class B, C-Tick, CE LVD |
|---|---|
| Windows operating systems supported | Yes |
| Mobile operating systems supported | Android, iOS |
Further product details25 details
| Preset points | Yes |
|---|---|
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Remote viewing | Yes |
| Antenna type | External |
| Antennas quantity | 1 |
| Minimum illumination | 0 lx |
| Tilt angle range | -20 - 100° |
| Tilt speed | 80 °/sec |
| Pan range | -170 - 170° |
| Pan speed | 80 °/sec |
| LED type | IR |
| Full HD | No |
| Flip & mirror | Yes |
| Time stamp overlay | Yes |
| Text caption overlay | Yes |
| Cabling technology | 10/100Base-T(X) |
| Quality of Service (QoS) support | Yes |
| IP address filtering | Yes |
| Alert notification type | Snapshot alert message |
| Web browser | Yes |
| Operating relative humidity (H-H) | 20 - 80% |
| Minimum system requirements | Microsoft Windows 8/7/Vista/XP SP3; Microsoft Internet Explorer 8, Firefox 12, Chrome 20, Safari 4, other Java-enabled browser |
| Resource CD | Yes |
| Removable IR-cut filter | Yes |
Packaging & supplied accessories2 details
| Remote control included | Yes |
|---|---|
| Mounting kit | Yes |
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
