DELL Pro Max FCM2250
tbdCOR ScoreAvailable after 3 critic reviews
Desktop PCs

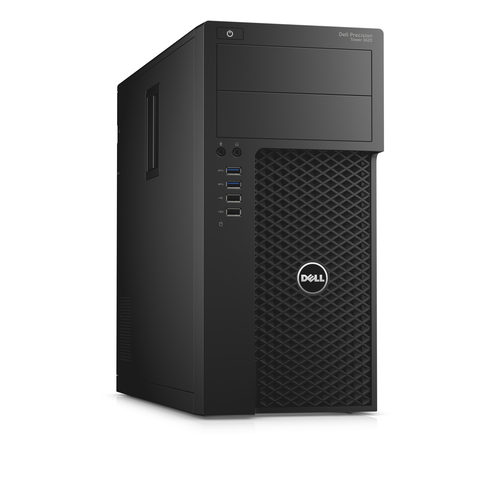

DELL Precision 3620 reviews
Product specifications and review coverage for this exact model.
Image supplied through Icecat
Product overview
DELL 02D9D is listed in the pcs/workstations category. The recorded specifications include processor family: Intel® Core™ i7; internal memory: 8 GB; total storage capacity: 1 TB; operating system installed: Windows 7 Professional. This entry covers manufacturer code 02D9D. Specifications relate to this exact source record; other editions or packages may differ.
Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.
Expert reviews
No scored critic reviews have been imported for this exact product yet. It remains unrated.
The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.
Specifications
Manufacturer code: 02D9D. Icecat product 32808518 · Checked 21 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.
| Processor family | Intel® Core™ i7 |
|---|---|
| Processor model | i7-6700 |
| Memory (RAM) | 8 GB |
| Total storage capacity | 1 TB |
| Storage media | HDD |
| Operating system installed | Windows 7 Professional |
| Discrete graphics card model | NVIDIA® Quadro® K420 |
| Chassis type | Mini Tower |
| Wi-Fi | No |
| Ethernet LAN | Yes |
More product specifications
Open a section for the details that matter to you.
Audio & listening2 details
| Headphone outputs | 1 |
|---|---|
| Microphone in | Yes |
Display2 details
| Number of displays supported (on-board graphics) | 3 |
|---|---|
| Display included | No |
Processor, memory & storage45 details
| Processor manufacturer | Intel |
|---|---|
| Processor generation | 6th gen Intel® Core™ i7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4 GHz |
| Processor frequency | 3.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-6700 Desktop series |
| Processor codename | Skylake |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.35 V |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 2133 MHz |
| Number of storage drives installed | 1 |
| HDD capacity | 1 TB |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 530 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| Maximum on-board graphics card memory | 1.74 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 1912 |
| Motherboard chipset | Intel® C236 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Processor package size | 37.5 x 37.5 mm |
| Processor code | SR2BT |
| Graphics & IMC lithography | 14 nm |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Processor ARK ID | 88196 |
| Conflict-Free processor | Yes |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Camera, image & video4 details
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Quick Sync Video Technology | Yes |
Connections & wireless10 details
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| DisplayPort connections | 2 |
| HDMI ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
Power & battery2 details
| Power supply input voltage | 100 - 240 V |
|---|---|
| Power supply input frequency | 50 - 60 Hz |
Controls & features1 detail
| Operating temperature (T-T) | 5 - 35 °C |
|---|
Design & dimensions12 details
| Thermal Design Power (TDP) | 65 W |
|---|---|
| Password protection | Yes |
| Password protection type | BIOS |
| Product type | Workstation |
| Placement supported | Horizontal/Vertical |
| Product colour | Black |
| Intel Identity Protection Technology version | 1.00 |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Width | 175 mm |
| Depth | 434.8 mm |
| Height | 359.9 mm |
| Weight | 9.1 kg |
Software & compatibility4 details
| Operating system architecture | 64-bit |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Supported instruction sets | SSE4.1, AVX 2.0, SSE4.2 |
Further product details50 details
| System bus rate | 8 GT/s |
|---|---|
| Bus type | DMI3 |
| Tcase | 71 °C |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 2x8, 1x8+2x4, 1x16 |
| Stepping | R0 |
| Non-ECC | Yes |
| Memory channels | Dual-channel |
| Optical drive type | DVD±RW |
| Number of HDDs installed | 1 |
| Optical drives quantity | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Line-out | Yes |
| Line-in | Yes |
| Number of 3.5" bays | 2 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI slots | 1 |
| Water cooling system | No |
| Cable lock slot | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Enhanced Halt State | Yes |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Thermal solution specification | PCG 2015C |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
Packaging & supplied accessories2 details
| Cables included | AC |
|---|---|
| Manual | Yes |
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
