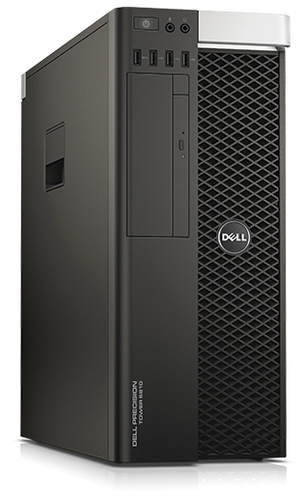

DELL Precision T5810 reviews
tbd
Compare DELL Precision T5810 reviews, specifications and available UK retailer offers. Check the details for this exact model and follow the original critics’ findings.
Manufacturer codeVN563
The product, explained
About the DELL Precision T5810
DELL VN563 is listed in the pcs/workstations category. The recorded specifications include processor family: Intel Xeon E5 v3; internal memory: 8 GB; total storage capacity: 1 TB; operating system installed: Windows 7 Professional. This entry covers manufacturer code VN563. Specifications relate to this exact source record; other editions or packages may differ.
This configuration lists 8 GB of memory and 1 TB of storage. Memory supports active applications; storage holds software and files. Check upgradeability separately, because a capacity figure does not establish whether either component can be replaced.
- Processor family
- Intel Xeon E5 v3
- Processor model
- E5-1620V3
- Memory (RAM)
- 8 GB
- Total storage capacity
- 1 TB
- Storage media
- HDD
- Operating system installed
- Windows 7 Professional
Make it work for you
Before choosing the DELL Precision T5810
Match components to applications
Match processor, memory and graphics to named applications.
Measure desk and ventilation
Measure desk and ventilation space, including cable access.
Confirm display support
Confirm monitor outputs, resolution and refresh support.
Independent perspectives
Expert reviews 0
Independent ratings, converted to the same five-point scale. Each card links to the original review and identifies the available evidence.
No scored critic reviews have been imported for this exact product yet. It remains unrated.
Independent reviews, made comparable
What does the COR Score mean?
One consistent scale makes different publishers’ ratings easier to compare. The original review still tells you why a critic reached that verdict.
Read our scoring methodology →Scale conversion · example
8/ 104.00/ 5
An illustration of conversion, not this product’s rating.
Check the match
Identify the exact model and the version reviewed. Check the manufacturer code, configuration and supplied accessories.
Compare on one scale
Convert usable ratings to five points, count each publisher once and give each critic equal weight.
Require three critics
Show the average to two decimal places after three distinct critics. Otherwise display tbd, keeping individual reviews visible.
Find the best fit by considering the score alongside the critic count, review dates, tested version and the strengths that matter to you. Eligible model-level reviews identify the tested configuration. Reviews of different hardware are shown separately and do not enter this product’s COR Score.
Know exactly what you’re buying
DELL Precision T5810 specifications
Manufacturer code: VN563 · Icecat product 33217125 · Checked 21 Sep 2026. Specifications belong to this exact model.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.
| Processor family | Intel Xeon E5 v3 |
|---|---|
| Processor model | E5-1620V3 |
| Memory (RAM) | 8 GB |
| Total storage capacity | 1 TB |
| Storage media | HDD |
| Operating system installed | Windows 7 Professional |
| Discrete graphics card model | NVIDIA® Quadro® K620 |
| Chassis type | Midi Tower |
| Wi-Fi | No |
| Ethernet LAN | Yes |
More product specifications
Open a section for the details that matter to you.
Audio & listening2 details
| Headphone outputs | 1 |
|---|---|
| Microphone in | Yes |
Display1 detail
| Display included | No |
|---|
Processor, memory & storage40 details
| Processor manufacturer | Intel |
|---|---|
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 3.5 GHz |
| Processor cache | 10 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E5-1600 v3 |
| Processor codename | Haswell |
| Number of processors installed | 1 |
| Processor socket | LGA 2011-v3 |
| Maximum internal memory supported by processor | 768 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 68 GB/s |
| ECC supported by processor | Yes |
| Maximum internal memory | 256 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 2133 MHz |
| Number of storage drives installed | 1 |
| HDD capacity | 1 TB |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| Card reader integrated | Yes |
| On-board graphics card | No |
| Discrete graphics card memory | 2 GB |
| Discrete graphics memory type | GDDR5 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card Open GL support | Yes |
| Motherboard chipset | Intel® C612 |
| Intel® Smart Cache | Yes |
| Processor package size | 52.5 x 45.0 mm |
| Processor code | SR20P |
| Processor ARK ID | 82763 |
| Conflict-Free processor | No |
Connections & wireless7 details
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Power & battery3 details
| Power supply | 685 W |
|---|---|
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Design & dimensions10 details
| Thermal Design Power (TDP) | 140 W |
|---|---|
| Password protection | Yes |
| Product type | Workstation |
| Placement supported | Vertical |
| Product colour | Black |
| Intel Identity Protection Technology version | 1.00 |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Width | 172.6 mm |
| Depth | 471 mm |
| Height | 414 mm |
Software & compatibility4 details
| Operating system architecture | 64-bit |
|---|---|
| Operating system language | Multilingual |
| Recovery operating system | Windows 10 Pro |
| Supported instruction sets | AVX 2.0 |
Further product details50 details
| System bus rate | 0 GT/s |
|---|---|
| Bus type | QPI |
| Tcase | 66.2 °C |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 40 |
| PCI Express configurations | 1x4, 1x8, 1x16 |
| Stepping | R2 |
| ECC | Yes |
| Memory channels | Quad-channel |
| Optical drive type | DVD±RW |
| Number of HDDs installed | 1 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Optical drives quantity | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Line-out | Yes |
| Line-in | Yes |
| Number of 3.5" bays | 2 |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI slots | 1 |
| Number of 5.25" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | No |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | Yes |
| Scalability | 1S |
| Physical Address Extension (PAE) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 0.00 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Sustainability certificates | ENERGY STAR |
Packaging & supplied accessories2 details
| Cables included | AC |
|---|---|
| Manual | Yes |
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
