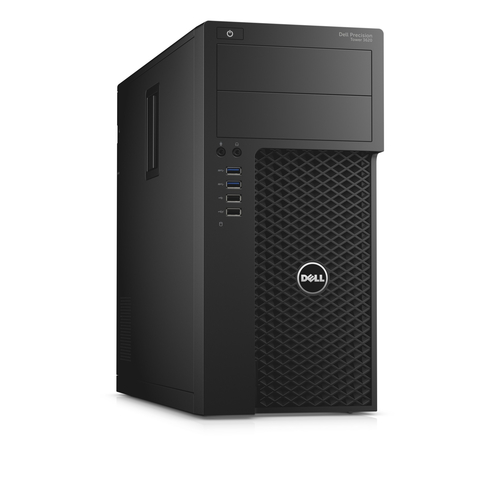

DELL Precision T3620 reviews
Product specifications and review coverage for this exact model.
Image supplied through Icecat
Product overview
DELL YYX5G is listed in the pcs/workstations category. The recorded specifications include processor family: Intel® Xeon® E3 v5; internal memory: 8 GB; total storage capacity: 256 GB; operating system installed: Windows 7 Professional. This entry covers manufacturer code YYX5G. Specifications relate to this exact source record; other editions or packages may differ.
Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.
Expert reviews
No scored critic reviews have been imported for this exact product yet. It remains unrated.
The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.
Specifications
Manufacturer code: YYX5G. Icecat product 33375013 · Checked 21 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.
| Processor family | Intel® Xeon® E3 v5 |
|---|---|
| Processor model | E3-1240V5 |
| Memory (RAM) | 8 GB |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Operating system installed | Windows 7 Professional |
| Discrete graphics card model | NVIDIA® Quadro® K620 |
| Chassis type | Mini Tower |
| Wi-Fi | No |
| Ethernet LAN | Yes |
More product specifications
Open a section for the details that matter to you.
Audio & listening4 details
| Headphone outputs | 1 |
|---|---|
| Microphone in | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Audio chip | Realtek ALC3861 |
Display1 detail
| Display included | No |
|---|
Processor, memory & storage44 details
| Processor manufacturer | Intel |
|---|---|
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 3.5 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 32-bit, 64-bit |
| Processor series | Intel Xeon E3-1200 v5 |
| Processor codename | Skylake |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,1866,2133 MHz |
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| ECC supported by processor | Yes |
| Memory voltage supported by processor | 1.35 V |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 2133 MHz |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 4 |
| SSD capacity | 256 GB |
| Card reader integrated | No |
| On-board graphics card | No |
| Discrete graphics card memory | 2 GB |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card Open GL support | Yes |
| Motherboard chipset | Intel® C236 |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel HD Graphics | No |
| Intel® Smart Cache | Yes |
| Processor package size | 37.5 x 37.5 mm |
| Processor code | SR2LD |
| Graphics & IMC lithography | 14 nm |
| Processor ARK ID | 88176 |
| Conflict-Free processor | Yes |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
Camera, image & video4 details
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
|---|---|
| Intel Clear Video Technology | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Quick Sync Video Technology | No |
Connections & wireless11 details
| SSD interface | PCI Express |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| DisplayPort connections | 2 |
| HDMI ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Intel® Wireless Display (Intel® WiDi) | No |
Power & battery2 details
| Power supply input voltage | 100 - 240 V |
|---|---|
| Power supply input frequency | 50 - 60 Hz |
Controls & features3 details
| Intel® Smart Response Technology | No |
|---|---|
| Intel Smart Connect Technology | No |
| Operating temperature (T-T) | 5 - 35 °C |
Design & dimensions9 details
| Thermal Design Power (TDP) | 80 W |
|---|---|
| Password protection | Yes |
| Product type | Workstation |
| Placement supported | Horizontal/Vertical |
| Product colour | Black |
| Width | 175 mm |
| Depth | 434.8 mm |
| Height | 359.9 mm |
| Weight | 9.1 kg |
Software & compatibility4 details
| Operating system architecture | 64-bit |
|---|---|
| Recovery operating system | Windows 10 Pro |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Further product details55 details
| System bus rate | 8 GT/s |
|---|---|
| Bus type | DMI3 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Stepping | R0 |
| Memory channels | Dual-channel |
| Optical drive type | DVD±RW |
| Number of SSDs installed | 1 |
| Optical drives quantity | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Line-out | Yes |
| Line-in | Yes |
| Number of 3.5" bays | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI slots | 1 |
| Number of 5.25" bays | 2 |
| Number of 2.5" bays | 4 |
| Cable lock slot | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Active Management Technology (Intel® AMT) | No |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel® Built-in Visuals Technology | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Enhanced Halt State | Yes |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel® Rapid Start Technology | No |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Mouse included on selected markets only | Yes |
| Keyboard included on selected markets only | Yes |
| Sustainability certificates | ENERGY STAR |
| Dell E-Value Code | N013H2P3620MTBTPWER |
Packaging & supplied accessories2 details
| Cables included | AC |
|---|---|
| Manual | Yes |
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
