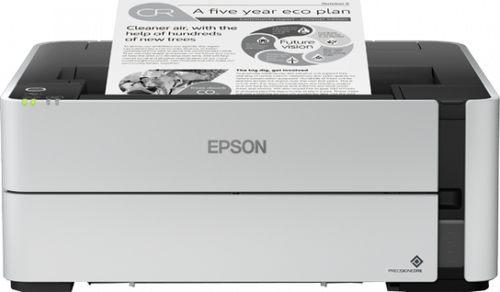

Epson EcoTank ET-M1180 reviews
Product specifications and review coverage for this exact model.
Image supplied through Icecat
Product overview
Epson C11CG94402BY is listed in the inkjet printers category. The recorded specifications include colour printing: No; duplex printing: Yes; wi-fi: Yes. This entry covers manufacturer code C11CG94402BY. Specifications relate to this exact source record; other editions or packages may differ.
Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.
Expert reviews
No scored critic reviews have been imported for this exact product yet. It remains unrated.
The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.
Specifications
Manufacturer code: C11CG94402BY. Icecat product 67464262 · Checked 16 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.
| Colour printing | No |
|---|---|
| Maximum resolution | 1200 x 2400 DPI |
| Duplex printing | Yes |
| Black print speed (normal A4/Letter) | 39 ppm |
| Largest ISO paper size | A4 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
More product specifications
Open a section for the details that matter to you.
Processor, memory & storage1 detail
| Memory (RAM) | 512 MB |
|---|
Printing, scanning & paper19 details
| Printing colours | Black |
|---|---|
| Print head nozzles | 400 Nozzles Black |
| Duplex print speed (black, normal quality, A4/US Letter) | 9 ppm |
| Duplex print speed (ISO/IEC 24734, A4) black | 9 ppm |
| Total number of input trays | 1 |
| Total output capacity | 100 sheets |
| Paper tray media types | Envelopes |
| Multi-purpose tray media types | Plain paper |
| Non-ISO print media sizes | Legal |
| Paper tray media weight | 64 - 256 g/m² |
| Mobile printing technologies | Epson Connect, Epson iPrint, Epson Email Print, Epson Remote Print, Google Cloud Print |
| Sound pressure level (printing) | 56 dB |
| Power consumption (printing) | 14 W |
| Colour printing technology | Pigment ink |
| Printing method | Epson PrecisionCore |
| Standard input trays | 250-sheet paper tray |
| Print head | PrecisionCoreTM TFP print head |
| Ink drop | 2.8 pl |
| Print speed | 39 pages/min Monochrome (plain paper 75 g/m²) |
Connections & wireless5 details
| USB port | Yes |
|---|---|
| Standard interfaces | Ethernet, USB, Wireless LAN |
| Wi-Fi Direct | Yes |
| Supported network protocols | TCP/IPv4, TCP/IPv6 |
| Interface | Hi-Speed USB - compatible with USB 2.0 specification, Ethernet interface (100 Base-TX / 10 Base-T), Wi-Fi Direct, Wireless LAN IEEE 802.11b/g/n |
Power & battery1 detail
| AC input voltage | 220 - 240 V |
|---|
Design & dimensions6 details
| Colour | No |
|---|---|
| Product colour | Black, White |
| Width | 375 mm |
| Depth | 347 mm |
| Height | 151 mm |
| Weight | 4.3 kg |
Software & compatibility4 details
| Windows operating systems supported | Yes |
|---|---|
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 R2, Windows Server 2012 x64, Windows Server 2016 |
| Compatible operating systems | Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X 10.11.x, Mac OS X 10.12.x, Mac OS X 10.13.x, Mac OS X 10.6.8, Windows 10 (32/64 bit), Windows 11, Windows 7 (32/64 bit), Windows 8 (32/64 bit), Windows 8.1 (32/64 bit), Windows Server 2003 R2 x64, Windows Server 2003 SP2, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista (32/64 bit), Windows XP SP3 or later (32-bit), XP Professional x |
Further product details15 details
| Recommended duty cycle | 200 - 1500 pages per month |
|---|---|
| Page description languages | PCL 5e |
| Maximum duty cycle | 5000 pages per month |
| Time to first page (black, normal) | 6 s |
| Total input capacity | 250 sheets |
| Maximum input capacity | 250 sheets |
| ISO A-series sizes (A0...A9) | A4, A5, A6 |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA2-PSK |
| Market positioning | Home & office |
| Safety warning | Contains 2,4,7,9-tetramethyldec-5-yne-4,7-diol. May produce an allergic reaction.Always follow the information on the product label. |
| All-in-one functions | |
| Page yield high capacity (black & white) | 11,000 pages |
| Box contents | Power cable, Printer, Warranty document, X2 ink bottles |
| Emulations | PCL5e, PCL6, PCL5c |
| Number of users | 3 user(s) |
Packaging & supplied accessories11 details
| Country of origin | Philippines |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 410 mm |
| Package depth | 440 mm |
| Package height | 280 mm |
| Package weight | 5.99 kg |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 4 pc(s) |
| Products per pallet (UK) | 28 pc(s) |
| Harmonized System (HS) code | 84433210 |
| Products per pallet | 14 pc(s) |
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
