HP All-in-One - 22-b020na (ENERGY STAR)
tbdCOR ScoreAvailable after 3 critic reviews
Desktop PCs
Product specifications and review coverage for this exact model.

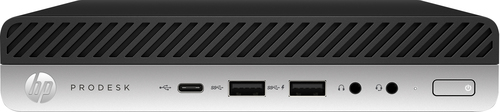

Image supplied through Icecat
HP 1CB77EA is listed in the pcs/workstations category. The recorded specifications include processor family: Intel® Core™ i5; internal memory: 8 GB; total storage capacity: 256 GB; operating system installed: Windows 10 Pro. This entry covers manufacturer code 1CB77EA. Specifications relate to this exact source record; other editions or packages may differ.
Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.
No scored critic reviews have been imported for this exact product yet. It remains unrated.
Specifications, review scores and prices belong to each exact model.
The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.
Manufacturer code: 1CB77EA. Icecat product 35721096 · Checked 20 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.
The main features to compare for this exact model. Missing details are not assumed.
| Processor family | Intel® Core™ i5 |
|---|---|
| Processor model | i5-7500T |
| Memory (RAM) | 8 GB |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Operating system installed | Windows 10 Pro |
| Discrete graphics card model | Not available |
| Chassis type | Mini PC |
| Wi-Fi | No |
| Ethernet LAN | Yes |
Open a section for the details that matter to you.
| Configurable TDP-down frequency | 1.7 GHz |
|---|---|
| Headphone outputs | 1 |
| Microphone in | Yes |
| Number of displays supported (on-board graphics) | 3 |
|---|---|
| Display included | No |
| Processor manufacturer | Intel |
|---|---|
| Processor generation | 7th gen Intel® Core™ i5 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.3 GHz |
| Processor frequency | 2.7 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Kaby Lake |
| Number of processors installed | 1 |
| Processor socket | LGA 1151 (Socket H4) |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
| ECC supported by processor | No |
| Memory voltage supported by processor | 1.35 V |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2400 MHz |
| SSD capacity | 256 GB |
| Card reader integrated | No |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| On-board graphics card model | Intel® HD Graphics 630 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1100 MHz |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.4 |
| On-board graphics card ID | 0x5912 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Processor package size | 37.5 x 37.5 mm |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Processor ARK ID | 97121 |
| Conflict-Free processor | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
|---|---|
| Intel Clear Video Technology | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| HP ePrint | Yes |
|---|
| SSD interface | SATA |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPort connections | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| Power supply | 65 W |
|---|
| HP Support Assistant | Yes |
|---|
| Thermal Design Power (TDP) | 35 W |
|---|---|
| Product type | Mini PC |
| Product colour | Black, Grey |
| Intel Identity Protection Technology version | 1.00 |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Width | 177 mm |
| Depth | 34.2 mm |
| Height | 174.7 mm |
| Weight | 1.21 kg |
| Operating system architecture | 64-bit |
|---|---|
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Supported instruction sets | AVX 2.0 |
| HP Software provided | HP BIOSphere Gen3 |
| System bus rate | 8 GT/s |
|---|---|
| Bus type | DMI3 |
| Tjunction | 80 °C |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 2x8, 1x8+2x4 |
| Memory channels | Dual-channel |
| Optical drive type | No |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| Volume | 1 L |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel Enhanced Halt State | Yes |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Thermal solution specification | PCG 2015A |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| HP Management tools | HP Client Catalog; HP Driver Packs; HP SoftPaq Download Manager (SDM); HP System Software Manager (SSM); HP BIOS Config Utility (BCU); HP Image Assistant; HP MIK for Microsoft SCCM |
| HP segment | Business |
| Mouse included | Yes |
| Keyboard included | Yes |
| Intel segment tagging | Enterprise, Small Business |
| Country of origin | China |
|---|
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
