HP 230 SFF reviews
Brand: HP More HP desktop pcs reviews →
tbd
Compare HP 230 SFF reviews, specifications and available UK retailer offers. Check the details for this exact model and follow the original critics’ findings.
Manufacturer codeD1P35AV_2097443D
The product, explained

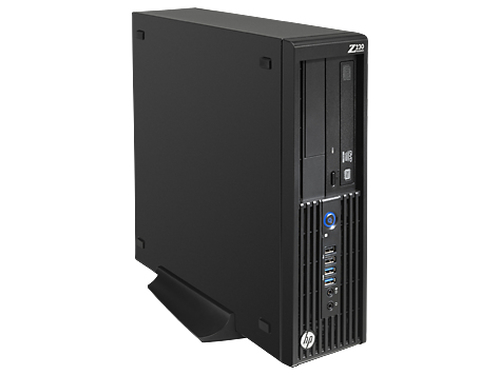

About the HP 230 SFF
HP D1P35AV_2097443D is listed in the pcs/workstations category. The recorded specifications include processor family: Intel® Xeon® E3 V3 Family; internal memory: 8 GB; total storage capacity: 256 GB; operating system installed: Windows 7 Professional. This entry covers manufacturer code D1P35AV_2097443D. Specifications relate to this exact source record; other editions or packages may differ.
This configuration lists 8 GB of memory and 256 GB of storage. Memory supports active applications; storage holds software and files. Check upgradeability separately, because a capacity figure does not establish whether either component can be replaced.
- Processor family
- Intel® Xeon® E3 V3 Family
- Processor model
- E3-1245V3
- Memory (RAM)
- 8 GB
- Total storage capacity
- 256 GB
- Storage media
- SSD
- Operating system installed
- Windows 7 Professional
Make it work for you
Before choosing the HP 230 SFF
Match components to applications
Match processor, memory and graphics to named applications.
Measure desk and ventilation
Measure desk and ventilation space, including cable access.
Confirm display support
Confirm monitor outputs, resolution and refresh support.
Independent perspectives
Expert reviews 0
Independent ratings, converted to the same five-point scale. Each card links to the original review and identifies the available evidence.
No scored critic reviews have been imported for this exact product yet. It remains unrated.
Independent reviews, made comparable
What does the COR Score mean?
One consistent scale makes different publishers’ ratings easier to compare. The original review still tells you why a critic reached that verdict.
Read our scoring methodology →Scale conversion · example
8/ 104.00/ 5
An illustration of conversion, not this product’s rating.
Check the match
Identify the exact model and the version reviewed. Check the manufacturer code, configuration and supplied accessories.
Compare on one scale
Convert usable ratings to five points, count each publisher once and give each critic equal weight.
Require three critics
Show the average to two decimal places after three distinct critics. Otherwise display tbd, keeping individual reviews visible.
Find the best fit by considering the score alongside the critic count, review dates, tested version and the strengths that matter to you. Eligible model-level reviews identify the tested configuration. Reviews of different hardware are shown separately and do not enter this product’s COR Score.
Know exactly what you’re buying
HP 230 SFF specifications
Manufacturer code: D1P35AV_2097443D · Icecat product 22828310 · Checked 24 Sep 2026. Specifications belong to this exact model.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.
| Processor family | Intel® Xeon® E3 V3 Family |
|---|---|
| Processor model | E3-1245V3 |
| Memory (RAM) | 8 GB |
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Operating system installed | Windows 7 Professional |
| Discrete graphics card model | Not available |
| Chassis type | SFF |
| Wi-Fi | No |
| Ethernet LAN | Yes |
More product specifications
Open a section for the details that matter to you.
Audio & listening3 details
| Headphone outputs | 1 |
|---|---|
| Microphone in | Yes |
| Audio system | HD |
Display3 details
| Number of displays supported (on-board graphics) | 3 |
|---|---|
| Intel Dual Display Capable Technology | Yes |
| Display included | No |
Processor, memory & storage39 details
| Processor manufacturer | Intel |
|---|---|
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 3.8 GHz |
| Processor frequency | 3.4 GHz |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Xeon E3-1200 v3 |
| Processor codename | Haswell |
| Number of processors installed | 1 |
| Processor socket | LGA 1150 (Socket H3) |
| Maximum internal memory supported by processor | 32 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1600 MHz |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| ECC supported by processor | Yes |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 2 x 4 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 1600 MHz |
| SSD capacity | 256 GB |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics P4600 |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1200 MHz |
| Motherboard chipset | Intel® C226 |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel® Smart Cache | Yes |
| Processor package size | 37.5 x 37.5 mm |
| Processor code | SR14T |
| Graphics & IMC lithography | 22 nm |
| Intel Stable Image Platform Program (SIPP) version | 1.00 |
| Intel Rapid Storage Technology | No |
| Processor ARK ID | 75462 |
| Conflict-Free processor | No |
Camera, image & video4 details
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
|---|---|
| Intel Clear Video Technology | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Quick Sync Video Technology | Yes |
Printing, scanning & paper1 detail
| Number of QPI links | 1 |
|---|
Connections & wireless10 details
| SSD interface | SATA |
|---|---|
| BD interface type | SATA |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI port | No |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| Intel® Wireless Display (Intel® WiDi) | No |
Power & battery1 detail
| Power supply | 240 W |
|---|
Design & dimensions9 details
| Thermal Design Power (TDP) | 84 W |
|---|---|
| Product type | Workstation |
| Product colour | Black |
| Intel Identity Protection Technology version | 1.00 |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Width | 337 mm |
| Depth | 384 mm |
| Height | 100 mm |
| Weight | 7.2 kg |
Software & compatibility2 details
| Operating system architecture | 64-bit |
|---|---|
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
Further product details49 details
| Bus type | QPI |
|---|---|
| FSB Parity | No |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| Stepping | C0 |
| Memory channels | Dual-channel |
| Optical drive type | DVD Super Multi |
| Number of SSDs installed | 1 |
| Optical drives quantity | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
| Line-out | Yes |
| Line-in | Yes |
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | Yes |
| Idle States | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel® OS Guard | Yes |
| Intel Trusted Execution Technology | Yes |
| Execute Disable Bit | Yes |
| Intel FDI Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Fast Memory Access | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Demand Based Switching | No |
| Scalability | 1S |
| CPU configuration (max) | 1 |
| Thermal solution specification | PCG 2013D |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI version | 1.00 |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Mouse included | No |
| Keyboard included | No |
| Sustainability certificates | ENERGY STAR |
Packaging & supplied accessories1 detail
| Country of origin | China |
|---|
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
