KYOCERA 1102TZ3NL1

Printers

KYOCERA ECOSYS M6630cidn reviews

Product specifications and review coverage for this exact model.

COR ScoretbdAvailable after 3 critic reviews0 critics

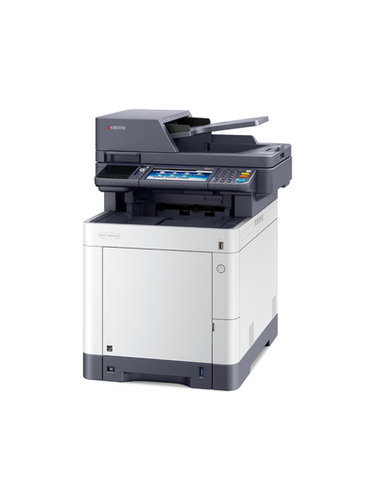

KYOCERA ECOSYS M6630cidn

Image supplied through Icecat

Product overview

KYOCERA 1102TZ3NL1 is listed in the multifunction printers category. The recorded specifications include print technology: Laser; colour printing: Yes; duplex printing: Yes; wi-fi: No. This entry covers manufacturer code 1102TZ3NL1. Specifications relate to this exact source record; other editions or packages may differ.

Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.

Expert reviews

No scored critic reviews have been imported for this exact product yet. It remains unrated.

2 model options — compare versions

Specifications, review scores and prices belong to each exact model.

The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.

Specifications

Manufacturer code: 1102TZ3NL1. Icecat product 59351552 · Checked 21 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.

Key specifications

The main features to compare for this exact model. Missing details are not assumed.

KYOCERA ECOSYS M6630cidn — key specifications
Print technologyLaser
Colour printingYes
Maximum resolution1200 x 1200 DPI
Duplex printingYes
Black print speed (normal A4/Letter)30 ppm
Largest ISO paper sizeA4
ScanningColour scanning
CopyingColour copying
Wi-FiNo
Ethernet LANYes

More product specifications

Open a section for the details that matter to you.

Audio & listening2 details
KYOCERA ECOSYS M6630cidn — Audio & listening
Sound pressure level (standby)30 dB
Sound pressure level (quiet mode)45 dB
Display5 details
KYOCERA ECOSYS M6630cidn — Display
Built-in displayYes
DisplayTFT
Screen size17.8 cm (7")
TouchscreenYes
Colour displayYes
Processor, memory & storage12 details
KYOCERA ECOSYS M6630cidn — Processor, memory & storage
Maximum internal memory3000 MB
Card reader integratedYes
Memory (RAM)1000 MB
Compatible memory cardsSD, SDHC
Built-in processorYes
Processor familyARM Cortex-A9
Processor frequency1200 MHz
Processor cores2
CoprocessorYes
Coprocessor frequency0.1 GHz
Storage temperature (T-T)-20 - 40 °C
Storage relative humidity (H-H)10 - 90%
Camera, image & video1 detail
KYOCERA ECOSYS M6630cidn — Camera, image & video
Image formats supportedJPEG, TIFF
Printing, scanning & paper77 details
KYOCERA ECOSYS M6630cidn — Printing, scanning & paper
Duplex printing modeAuto
Print resolution colour1200 x 1200 DPI
PrintingColour printing
Print speed (colour, normal quality, A4/US Letter)30 ppm
Duplex print speed (black, normal quality, A4/US Letter)15 ppm
Duplex print speed (colour, normal quality, A4/US Letter)15 ppm
N-in-1 print functionYes
N-up printing2, 4, 6, 8, 9, 16, 25
Watermark printingYes
Economical printingYes
Secure printingYes
Poster printing functionYes
Duplex copyingYes
Duplex copying modeAuto
Maximum copy resolution600 x 600 DPI
Copy speed (black, normal quality, A4)30 cpm
Copy speed (colour, normal quality, A4)30 cpm
Copy speed (black, normal, US Letter)30 cpm
Copy speed (colour, normal, US Letter)30 cpm
Duplex copy speed (black, US Letter)15 ppm
Time to first copy (black, normal)8.5 s
Time to first copy (colour, normal)10 s
N-in-1 copy functionYes
N-in-1 copy function (N=)2, 4
Copy programming functionYes
ID-card copy functionYes
Duplex scanningYes
Duplex scanning modeAuto
Optical scanning resolution600 x 600 DPI
Scanner typeFlatbed & ADF scanner
Scan technologyCIS/CCD
Scan toE-mail, FTP, SMB, TWAIN, USB, WIA
Scan speed (colour)40 ppm
Scan speed (black)60 ppm
Duplex scan speed (colour)17 ppm
Duplex scan speed (black)26 ppm
Scan driversTWAIN, WIA
Duplex faxingYes
FaxingMono faxing
Fax resolution (black)400 x 400 DPI
Fax transmission speed3 sec/page
Fax memory256 pages
Fax coding methodsJBIG, MH, MMR, MR
Duplex functionsCopy, Fax, Print, Scan
Number of print cartridges4
Printing coloursBlack, Cyan, Magenta, Yellow
Printer fontsBarcode, Bitmap, PCL, Windows
Number of printer fonts93
Replacement cartridgesTK-5270K, TK-5270C, TK-5270M, TK-5270Y
Total number of input trays1
Total output capacity250 sheets
Paper tray 1 input capacity250 sheets
Paper tray 2 input capacity500 sheets
Paper tray 3 input capacity500 sheets
Paper tray 4 input capacity500 sheets
Paper input typeCassette, Paper tray
Auto document feeder (ADF)Yes
Auto document feeder (ADF) input capacity75 sheets
Maximum number of input trays4
Maximum output capacity250 sheets
Maximum print size216 x 356 mm
Paper tray media typesPlain paper
Multi-purpose tray media typesBond paper, Envelopes, Labels, Legal, Letter, Letterhead, Plain paper, Recycled paper, Thick paper, Thin paper
Non-ISO print media sizesFolio, Legal, Letter
Paper tray media weight60 - 163 g/m²
Multi-Purpose Tray media weight60 - 220 g/m²
Auto Document Feeder (ADF) media weight50 - 120 g/m²
Duplex media weight60 - 163 g/m²
Direct printingYes
Mobile printing technologiesGoogle Cloud Print, Kyocera Mobile Print, Mopria Print Service
Sound pressure level (printing)49.5 dB
Sound pressure level (copying)49.5 dB
Power consumption (printing)496 W
Power consumption (copying)521 W
Cartridge(s) includedYes
Included cartridge capacity (black)3500 pages
Included cartridge capacity (CMY)2500 pages
Connections & wireless7 details
KYOCERA ECOSYS M6630cidn — Connections & wireless
Standard interfacesEthernet, USB 2.0
USB portYes
USB 2.0 ports quantity3
Optional connectivityEthernet, Wireless LAN
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothNo
NFCNo
Power & battery8 details
KYOCERA ECOSYS M6630cidn — Power & battery
Power consumption (max)1179 W
Power consumption (average operating)496 W
Power consumption (ready)70 W
Power consumption (sleep)0.6 W
Power consumption (off)0.2 W
Energy Star Typical Electricity Consumption (TEC)1.45 kWh/week
AC input voltage220 - 240 V
AC input frequency50 - 60 Hz
Controls & features2 details
KYOCERA ECOSYS M6630cidn — Controls & features
Control typeTouch
Operating temperature (T-T)10 - 32.5 °C
Design & dimensions7 details
KYOCERA ECOSYS M6630cidn — Design & dimensions
Time to first page (colour, normal)7.5 s
Custom media width70 - 216 mm
Product colourBlack, White
Width475 mm
Depth558 mm
Height616 mm
Weight35.4 kg
Software & compatibility7 details
KYOCERA ECOSYS M6630cidn — Software & compatibility
Document formats supportedPDF, XPS
Windows operating systems supportedYes
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supportedYes
Waste Electrical and Electronic Equipment (WEEE) complianceYes
CertificationTÜV/GS, CE
Compliance certificatesREACH, RoHS
Further product details30 details
KYOCERA ECOSYS M6630cidn — Further product details
Warm-up time26 s
Time to first page (black, normal)6.5 s
Maximum number of copies999 copies
Copier resize25 - 400%
Greyscale levels256
Modem speed33.6 Kbit/s
Speed diallingYes
Recommended duty cycle1500 - 5000 pages per month
Maximum duty cycle100000 pages per month
Digital senderYes
Page description languagesPCL 5c, PCL 6, PCL XL, PostScript 3, XPS
Total input capacity250 sheets
Multi-Purpose trayYes
Multi-Purpose tray input capacity100 sheets
Maximum input capacity1850 sheets
ISO A-series sizes (A0...A9)A4, A5, A6
ISO B-series sizes (B0...B9)B5, B6
Custom media length148 - 356 mm
Cabling technology10/100/1000Base-T(X)
Email protocolsPOP3, SMTP
Email over SSLYes
Market positioningBusiness
Operating relative humidity (H-H)15 - 80%
Operating altitude0 - 3500 m
Non-operating altitude0.6 - 15000 m
Sustainability certificatesBlue Angel, EPEAT Silver, ENERGY STAR
Imaging unit includedYes
Drivers includedYes
Power cord includedYes
Quick installation guideYes
Packaging & supplied accessories7 details
KYOCERA ECOSYS M6630cidn — Packaging & supplied accessories
Package width726 mm
Package depth623 mm
Package height828 mm
Package weight48 kg
Cables includedAC
ManualYes
Harmonized System (HS) code84433100

Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
