DELL JX4DR-3YPS
tbdCOR ScoreAvailable after 3 critic reviews
Desktop PCs

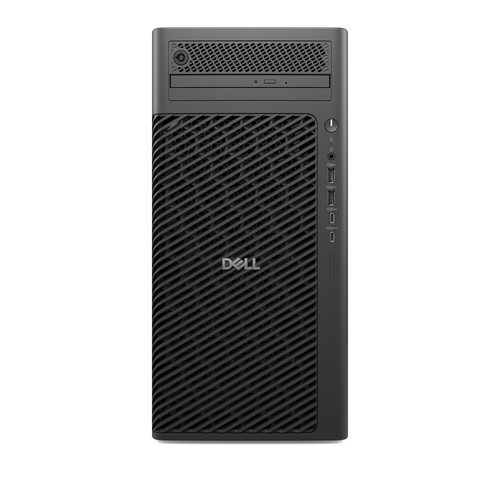

DELL Pro Max FCT2250 T2 reviews
Product specifications and review coverage for this exact model.
Image supplied through Icecat
Product overview
DELL D64R5 is listed in the pcs/workstations category. The recorded specifications include processor family: Intel Core Ultra 9; internal memory: 32 GB; total storage capacity: 1 TB; operating system installed: Windows 11 Pro. This entry covers manufacturer code D64R5. Specifications relate to this exact source record; other editions or packages may differ.
Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.
Expert reviews
No scored critic reviews have been imported for this exact product yet. It remains unrated.
The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.
Specifications
Manufacturer code: D64R5. Icecat product 131424005 · Checked 17 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.
| Processor family | Intel Core Ultra 9 |
|---|---|
| Processor model | 285 |
| Memory (RAM) | 32 GB |
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Operating system installed | Windows 11 Pro |
| Discrete graphics card model | Not available |
| Chassis type | Tower |
| Wi-Fi | No |
| Ethernet LAN | Yes |
More product specifications
Open a section for the details that matter to you.
Audio & listening6 details
| Performance-core Max Turbo Frequency | 5.4 GHz |
|---|---|
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.9 GHz |
| Audio chip | Realtek ALC3204 |
| Audio system | High Definition Audio |
Display1 detail
| Display included | No |
|---|
Processor, memory & storage28 details
| Processor manufacturer | Intel |
|---|---|
| Processor generation | Intel Core Ultra (Series 2) |
| Processor cores | 24 |
| Processor threads | 24 |
| Processor boost frequency | 5.6 GHz |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor base power | 65 W |
| Neural processor unit (NPU) | Intel AI Boost |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 36 TOPs |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
| Number of storage drives installed | 1 |
| SSD capacity | 1 TB |
| SSD memory type | TLC |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Discrete graphics card | No |
| On-board graphics card | Yes |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Motherboard chipset | Intel W880 |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 0 - 95% |
Printing, scanning & paper1 detail
| Total carbon footprint (kg of CO2e) | 406 |
|---|
Connections & wireless17 details
| SSD interface | PCI Express |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I219-LM |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 2 |
| Thunderbolt 4 ports quantity | 1 |
| DisplayPort connections | 2 |
| DisplayPort version | 1.4a |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Number of rear USB ports | 6 |
| Number of front USB ports | 4 |
| Number of SATA III connectors | 4 |
Power & battery4 details
| Power supply | 1500 W |
|---|---|
| Power supply input voltage | 90 - 264 V |
| Power supply input frequency | 47/63 Hz |
| Carbon emissions, energy usage (kg of CO2e) | 231.42 |
Controls & features1 detail
| Operating temperature (T-T) | 0 - 35 °C |
|---|
Design & dimensions7 details
| Product type | PC |
|---|---|
| Placement supported | Vertical |
| Product colour | Black |
| Width | 187.7 mm |
| Depth | 438 mm |
| Height | 387 mm |
| Weight | 9.7 kg |
Software & compatibility4 details
| 80 PLUS certification | 80 PLUS Platinum |
|---|---|
| Operating system architecture | 64-bit |
| Operating system language | Danish, English, Finnish, Norwegian, Swedish |
| Trial software | Activate Your Microsoft 365 For A 30 Day Trial |
Further product details40 details
| Performance cores | 8 |
|---|---|
| Efficient cores | 16 |
| Maximum turbo power | 182 W |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Non-ECC | Yes |
| Memory channels | Single-channel |
| Memory data transfer rate | 5600 MT/s |
| Optical drive type | No |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| NVMe | Yes |
| On-board GPU manufacturer | Intel |
| Market positioning | Business |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Cabling technology | 10/100/1000Base-T(X) |
| Intel® Thunderbolt 4 | Yes |
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Volume | 32 L |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Intel® vPro™ Platform Eligibility | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Sustainability certificates | ENERGY STAR, EPEAT Climate + |
| Doesn't contain | PVC/BFR |
| Carbon emissions, manufacturing (kg of CO2e) | 145.35 |
| Carbon emissions, logistics (kg of CO2e) | 15.43 |
| Carbon emissions, end-of-life (kg of CO2e) | 13.8 |
| PAIA version | GaBi version 1, 2024 |
Packaging & supplied accessories1 detail
| Cables included | AC |
|---|
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
