Product overview
Barco K9602638 is listed in the computer monitors category. The recorded specifications include display diagonal: 54.1 cm (21.3"); display resolution: 2048 x 1536 pixels. This entry covers manufacturer code K9602638. Specifications relate to this exact source record; other editions or packages may differ.
Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.
Expert reviews
No scored critic reviews have been imported for this exact product yet. It remains unrated.
3 model options — compare versions
Specifications, review scores and prices belong to each exact model.
The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.
Specifications
Manufacturer code: K9602638. Icecat product 25943308 · Checked 22 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.
Key specifications
The main features to compare for this exact model. Missing details are not assumed.

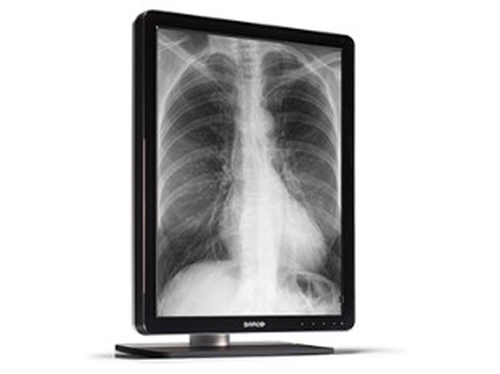

Barco Coronis 3MP LED — key specifications
Screen size
54.1 cm (21.3")
Screen resolution
2048 x 1536 pixels
Response time
40 ms
Display brightness (typical)
1700 cd/m²
DisplayPort connections
1
More product specifications
Open a section for the details that matter to you.
Audio & listening2 details
Barco Coronis 3MP LED — Audio & listening
Pixel frequency
280 MHz
Built-in speakers
No
Display5 details
Barco Coronis 3MP LED — Display
Touchscreen
No
Contrast ratio (typical)
1400:1
Viewing angle, horizontal
178°
Viewing angle, vertical
178°
On Screen Display (OSD)
Yes
Processor, memory & storage3 details
Barco Coronis 3MP LED — Processor, memory & storage
Card reader integrated
No
Storage temperature (T-T)
-20 - 60 °C
Storage relative humidity (H-H)
5 - 95%
Camera, image & video1 detail
Barco Coronis 3MP LED — Camera, image & video
Built-in camera
No
Printing, scanning & paper2 details
Barco Coronis 3MP LED — Printing, scanning & paper
Horizontal scan range
15 - 129 kHz
Vertical scan range
24 - 100 Hz
Connections & wireless7 details
Barco Coronis 3MP LED — Connections & wireless
USB hub version
2.0
USB Type-A downstream ports quantity
3
DVI port
Yes
DVI-D ports quantity
1
Bluetooth
No
Ethernet LAN
No
Panel mounting interface
100 x 100 mm
Power & battery5 details
Barco Coronis 3MP LED — Power & battery
Power consumption (typical)
40 W
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
AC adapter included
Yes
Supplied AC adapter type
LED
Controls & features1 detail
Barco Coronis 3MP LED — Controls & features
Operating temperature (T-T)
0 - 40 °C
Design & dimensions12 details
Barco Coronis 3MP LED — Design & dimensions
Product colour
Black, White
VESA mounting
Yes
Height adjustment
Yes
Adjustable height (max)
10 cm
Width (with stand)
378 mm
Depth (with stand)
235 mm
Height (with stand)
628 mm
Weight (with stand)
12.8 kg
Width (without stand)
378 mm
Depth (without stand)
84 mm
Height (without stand)
491 mm
Weight (without stand)
8 kg
Software & compatibility3 details
Barco Coronis 3MP LED — Software & compatibility
Bundled software
MediCal QAWeb
Compliance industry standards
RoHS
Certification
CE0120 (MDD 93/42/EEC; A1:2007/47/EC class II b product), CE - 2004/108/EC, IEC 60950-1:2005 + A1:2009 (2ND EDITION), IEC 60601-1:2005 + A1:2012, ANSI/AAMI ES 60601-1:2005 + C1:2009 + A1:2012, CAN/CSAC22.2 No. 60601-1(2008), DEMKO - EN 60601-1:2006, EN 60601-1-2:2007, CCC - GB9254-2008 + GB4943.1-2011 + GB17625.1-2003, KCC, VCCI, FCC class B, ICES-001 Level B, FDA 510(k)
Further product details22 details
Barco Coronis 3MP LED — Further product details
HD type
Full HD
Native aspect ratio
4:3
Aspect ratio
4:3
Pixel pitch
0.2115 x 0.2115 mm
Viewable size, horizontal
43.3 cm
Viewable size, vertical
32.5 cm
Viewable size diagonal
54 cm
Market positioning
Medical
Cable lock slot
No
Pivot
No
Swivelling
Yes
Swivel angle range
-30 - 30°
Tilt adjustment
Yes
Tilt angle range
-5 - 25°
Number of OSD languages
14
LED indicators
Yes
Operating relative humidity (H-H)
8 - 80%
Operating altitude
0 - 2000 m
Non-operating altitude
0 - 7500 m
Quick start guide
Yes
TV tuner integrated
No
Power management
Yes
Packaging & supplied accessories5 details
Barco Coronis 3MP LED — Packaging & supplied accessories
Package width
686 mm
Package depth
585 mm
Package height
342 mm
Package weight
17.7 kg
Cables included
DisplayPort, DVI, USB
Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
