NEC 60003820

Monitors

NEC EA305WMi reviews

Product specifications and review coverage for this exact model.

COR ScoretbdAvailable after 3 critic reviews0 critics

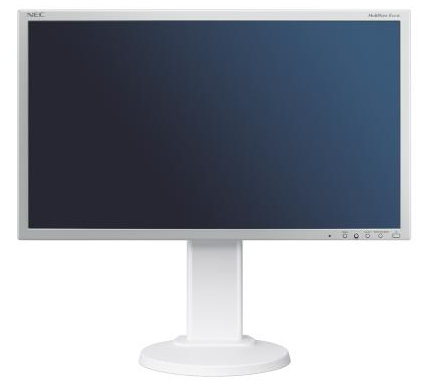

NEC EA305WMi

Image supplied through Icecat

Product overview

NEC 60003820 is listed in the computer monitors category. The recorded specifications include display diagonal: 76.2 cm (30"); display resolution: 2560 x 1600 pixels; panel type: AH-IPS. This entry covers manufacturer code 60003820. Specifications relate to this exact source record; other editions or packages may differ.

Automatically assembled from the source specifications. This is a factual summary, not a hands-on review.

Expert reviews

No scored critic reviews have been imported for this exact product yet. It remains unrated.

2 model options — compare versions

Specifications, review scores and prices belong to each exact model.

The COR Score gives each publisher one rating. Scores are converted to the same five-point scale.

Specifications

Manufacturer code: 60003820. Icecat product 30650986 · Checked 23 Sep 2026. The source lists this code for Great Britain. No specifications are transferred from other editions.

Key specifications

The main features to compare for this exact model. Missing details are not assumed.

NEC EA305WMi — key specifications
Screen size76.2 cm (30")
Screen resolution2560 x 1600 pixels
Panel typeAH-IPS
Response time6 ms
Display brightness (typical)350 cd/m²
HDMI ports1
DisplayPort connections2

More product specifications

Open a section for the details that matter to you.

Audio & listening3 details
NEC EA305WMi — Audio & listening
Number of speakers2
Rated audio power (RMS)2 W
Built-in speakersYes
Display8 details
NEC EA305WMi — Display
Display technologyLED
TouchscreenNo
Screen shapeFlat
Contrast ratio (typical)1000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours1.073 billion colours
On Screen Display (OSD)Yes
Processor, memory & storage1 detail
NEC EA305WMi — Processor, memory & storage
Supported graphics resolutions640 x 480 (VGA), 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1440, 2560 x 1600 (WQXGA)
Camera, image & video1 detail
NEC EA305WMi — Camera, image & video
Built-in cameraNo
Printing, scanning & paper2 details
NEC EA305WMi — Printing, scanning & paper
Horizontal scan range31.5 - 83 kHz
Vertical scan range56 - 75 Hz
Connections & wireless7 details
NEC EA305WMi — Connections & wireless
USB version2.0/3.2 Gen 1 (3.1 Gen 1)
Built-in USB hubYes
Number of upstream ports2
USB Type-A downstream ports quantity2
DVI portYes
DVI-D ports quantity1
Panel mounting interface100 x 100 mm
Power & battery9 details
NEC EA305WMi — Power & battery
Power consumption (typical)63 W
Power consumption (max)83 W
Power consumption (PowerSave)0.5 W
AC input voltage100 - 220 V
AC input frequency50 - 60 Hz
Annual energy consumption88 kWh
Power consumption (economy mode)48 W
Energy efficiency class (legacy scale)C
Supplied AC adapter typeLED
Controls & features1 detail
NEC EA305WMi — Controls & features
Operating temperature (T-T)5 - 35 °C
Design & dimensions8 details
NEC EA305WMi — Design & dimensions
Product colourWhite
VESA mountingYes
Height adjustmentYes
Adjustable height (max)13 cm
Width (without stand)687 mm
Depth (without stand)230 mm
Height (without stand)473 mm
Weight (without stand)11 kg
Software & compatibility1 detail
NEC EA305WMi — Software & compatibility
CertificationCE; EAC; ErP; FCC, ISO 9241-30; MPR II/ MPR III; RoHS; TCO 6.0; TÜV; TÜV GS; UL/C-UL, CSA
Further product details18 details
NEC EA305WMi — Further product details
HD typeWQXGA
Native aspect ratio16:10
Backlight typeRGB LED
Aspect ratio16:10
Pixel pitch0.251 x 0.251 mm
3DNo
Cable lock slotYes
Cable lock slot typeKensington
SwivellingYes
Swivel angle range-170 - 170°
Tilt adjustmentYes
Tilt angle range-5 - 30°
Plug and PlayYes
Operating relative humidity (H-H)20 - 80%
Sustainability certificatesENERGY STAR
RotatingYes
TV tuner integratedNo
Thin client installedNo
Packaging & supplied accessories1 detail
NEC EA305WMi — Packaging & supplied accessories
Cables includedAC, DisplayPort, USB

Specifications describe the supplied product data, not measured review results. Battery life, range and performance figures are source claims and can vary with use.
